• Chrome front bumper w/Matte Black cover
• Chrome rear step bumper w/step pad
• Dark argent air dam
• Wheel opening flares
• Deluxe chrome grille
• Dual auto composite halogen headlamps
• Daytime running lamps
• Roof marker lamps
• Dual cargo area lamps
• Dual chrome fold away pwr mirrors
• (4) full-size doors
• Solar-Ray tinted glass
• Intermittent windshield wiper system
• Insulation-inc: cab, acoustic, thermal panel

• LS decor

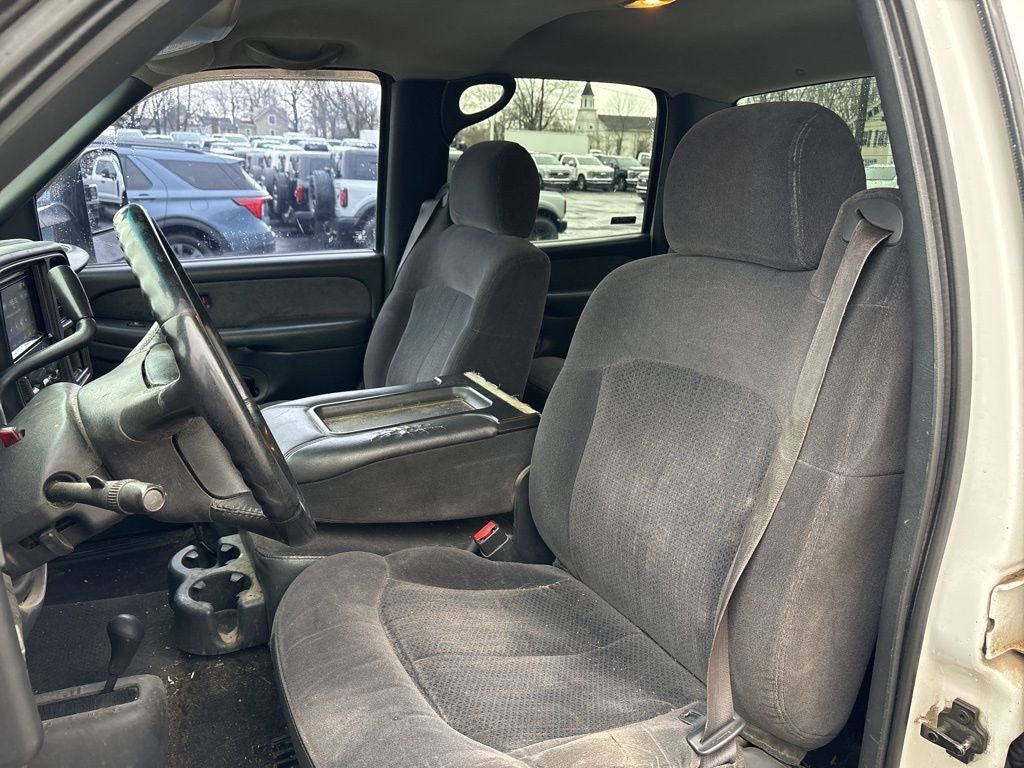

• 3-passenger custom cloth 40/20/40 reclining front split bench seat w/center fold-down storage armrest, manual driver/passenger lumbar, adjustable outboard head restraints, front seatback storage pockets
• 3-passenger 60/40 split-folding rear bench seat w/matching trim
• Color-keyed full floor carpeting w/front rubber floor mats
• Leather-wrapped steering wheel
• Tilt steering wheel
• Passlock II theft deterrent security system
• Driver message center warnings-inc: trans overheat, low fuel, low coolant, vehicle security, oil level/pressure/change needed
• Warning tones-inc: key-in-ignition, seat belt, headlamp, turn signal
• Cruise control
• Auto programmable pwr door locks w/backlit switches
• Pwr windows
• Remote keyless entry
• Illuminated entry
• Air conditioning

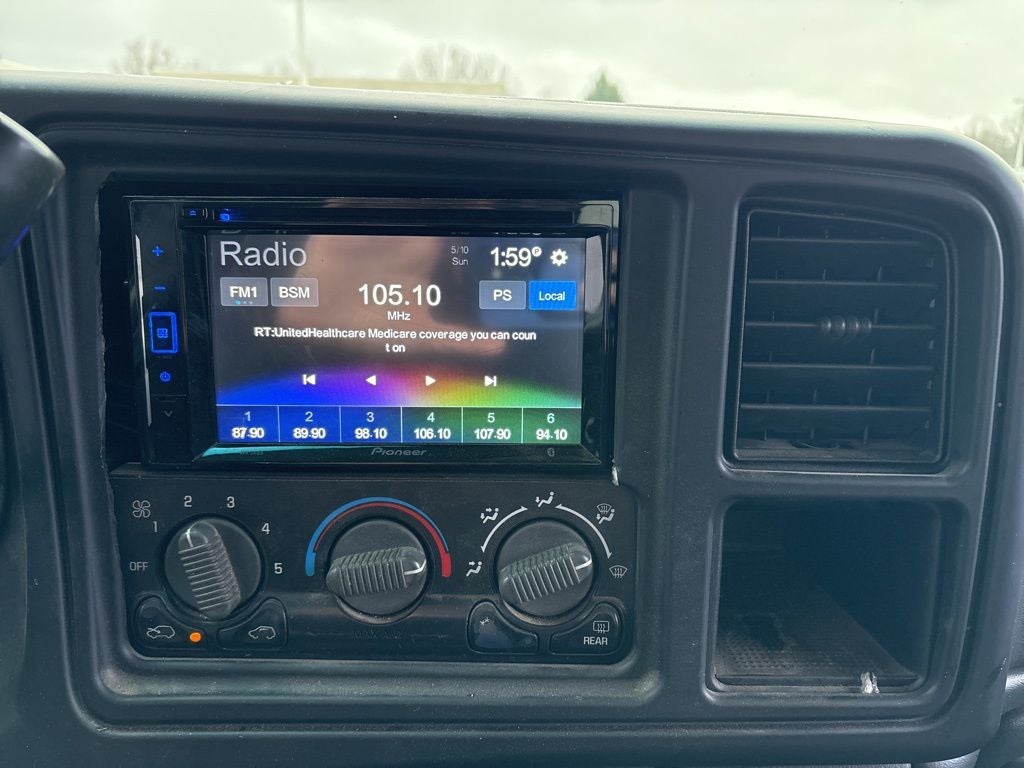

• ETR AM/FM stereo w/compact disc-inc: seek-scan, digital clock, auto tone control, theft lock, speed compensated volume, 6 speakers
• Dual seat-mounted cup holders
• Dual covered pwr points
• Door trim w/illuminated side reflectors
• Overhead console w/map lights
• Color-keyed cloth headliner
• Dual color-keyed padded cloth sunshades-inc: driver storage pocket, passenger mirror, visor extenders
• Passenger assist handles
• Lighting-inc: dome, ashtray, glove box, underhood
• Dual coat hooks

• 4-wheel anti-lock brake system
• Driver & front passenger airbags
• Manual lap/shoulder safety belts, front/rear outboard seat positions
• Manual lap safety belts, center seat positions
• Head restraints at outboard seating positions
• Daytime running lamps
• Side door guard beams

6.6L (403) FI V8 (DURAMAX) TURBO DIESEL ENGINE

• dual 770 CCA batteries
• grille cover
• high capacity air cleaner
• engine block heater

• HD Trailering Equipment
• Preferred Equipment Group 1SB
• AM/FM
• Air Conditioning
• Power steering
• HD Suspension
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Fleetside Body Ordering Code
• Fully automatic headlights
• Dual rear wheels
• Rear Locking Differential
• Engine Block Heater
• Bumpers: chrome
• Rear step bumper
• Driver door bin
• LS Decor
• Passenger vanity mirror
• Sport steering wheel
• Tachometer
• Tilt steering wheel
• Voltmeter
• Split folding rear seat
• Passenger door bin
• 16" x 6.5" Silver Painted Steel Wheels
• Variably intermittent wipers
• 3.73 Axle Ratio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 22.0
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 8550
• Curb Weight - Front (lbs): 3424
• Curb Weight - Rear (lbs): 2791
• Gross Vehicle Weight Rating Cap (lbs): 11,400
• Gross Combined Wt Rating (lbs): 22,000
• Gross Combined Wt Rating (lbs): 16,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 7500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 1000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12,000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9,800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12,000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9,800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3500
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Front: - TBD -
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2
• Tires
• Front Tire Order Code: XEF
• Rear Tire Order Code: XEF
• Spare Tire Order Code: XEC
• Front Tire Size: LT215/85R16
• Rear Tire Size: LT215/85R16
• Spare Tire Size: LT215/85R16
• Front Tire Capacity (lbs): 2430
• Rear Tire Capacity (lbs): 2150
• Spare Tire Capacity (lbs): 2430
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24.1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 55.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 167.0
• Length, Overall w/o rear bumper (in): 256.2
• Width, Max w/o mirrors (in): 79.7
• Height, Overall (in): 76.2
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 47.3
• Front Bumper to Back of Cab (in): 148.1
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.6
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 70.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.9
• Second Leg Room (in): 38.8
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 62.9
• Summary

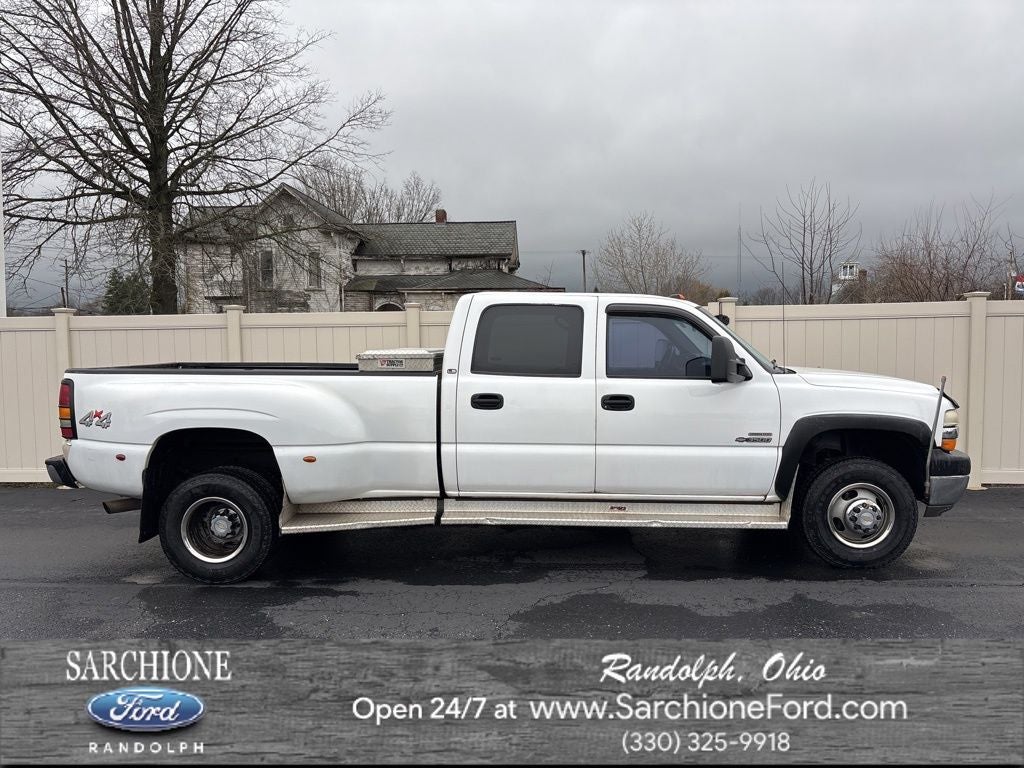

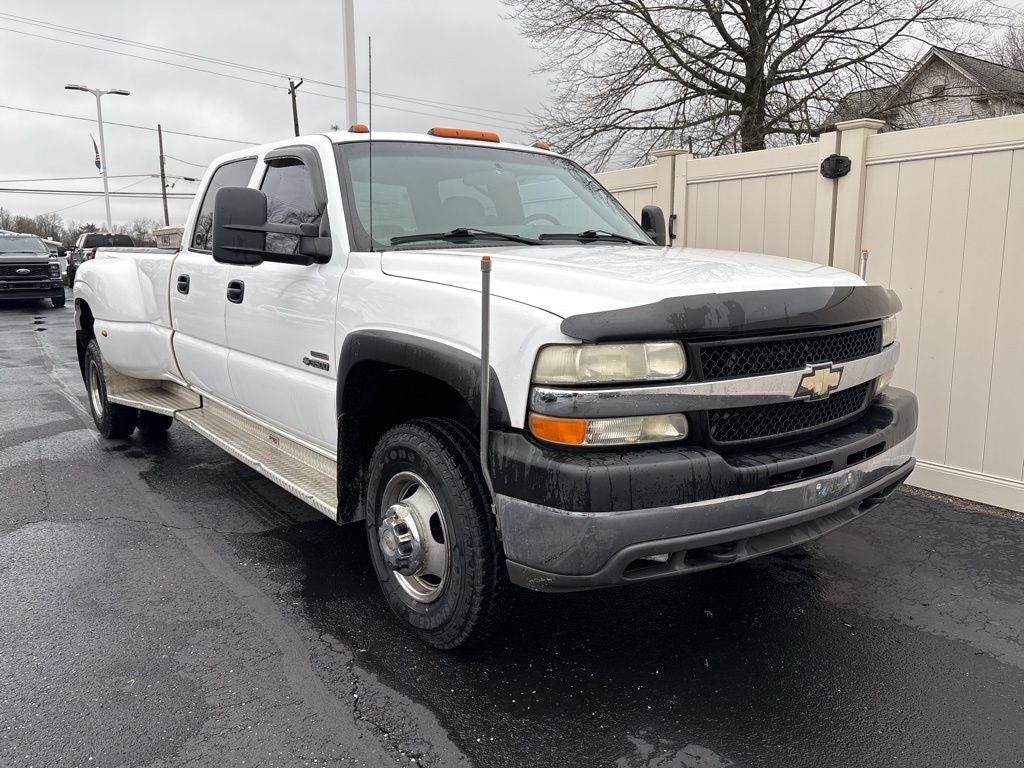

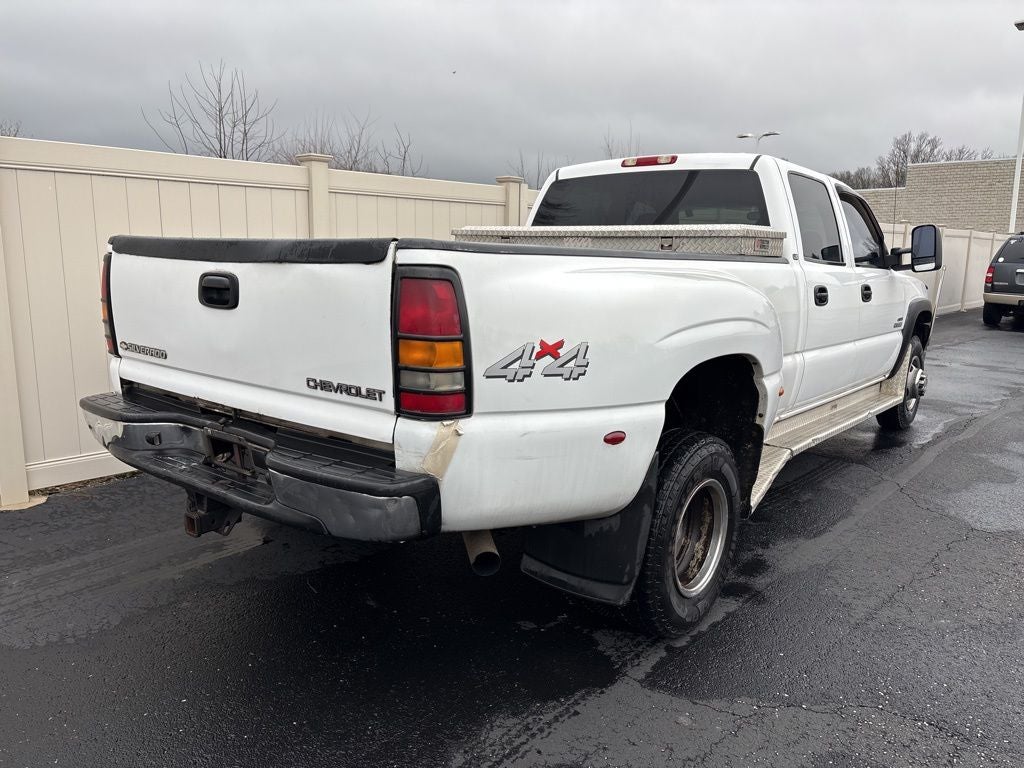

• Vehicle Name: Chevrolet Silverado 3500
• Body Style: Crew Cab 8' Fleetside
• Body Code: E63
