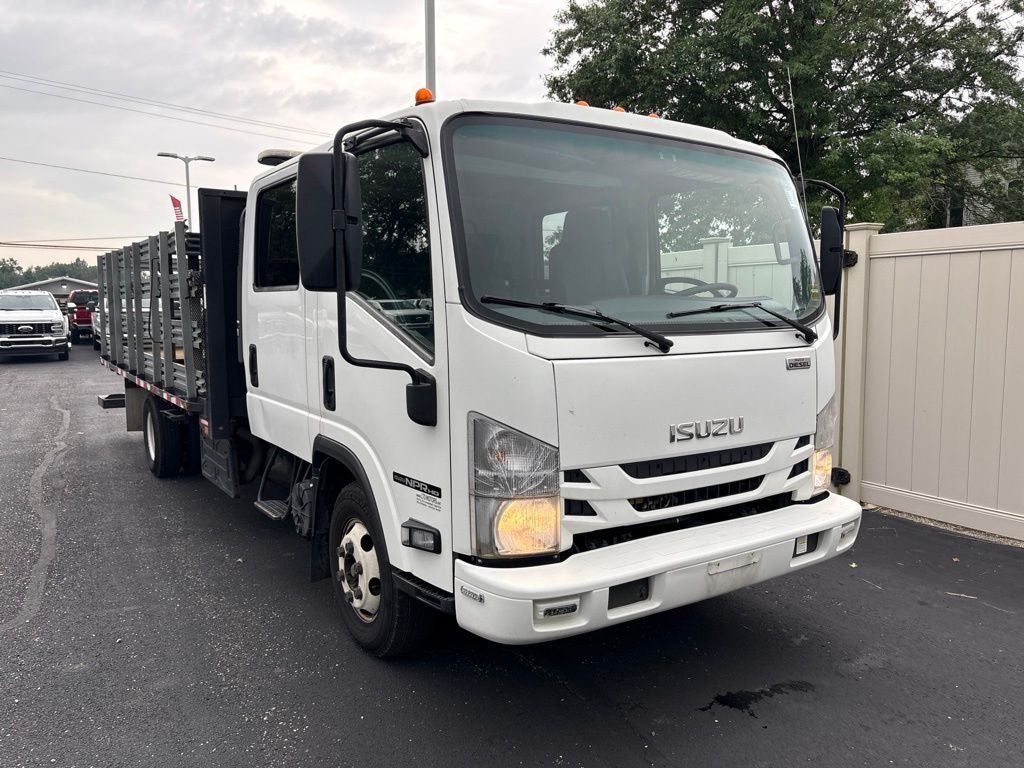

2016 Isuzu NPR IBT PWL

  • $32,448 BEST PRICE:
  • Documentary Fee $398
  • Title Processing Fee $50

  • *Please Note: We turn our inventory daily, please check with the dealer to confirm vehicle availability.

  • Click To Call
  • Contact Us
  • Calculate My Payment
  • Value My Trade-In
  • Credit Application

Visit our Store

Vehicle Information

VIN: JALC4J165G7004331
Stock #: 1094A
Model Code: NG304
  • Body Style 4D Crew Cab/Chassis
  • Exterior Color White
  • Interior Color Gray
  • Mileage 71,355
  • Engine 4 Cyl - 5.190 L
  • Transmission 6-Speed Automatic with Overdrive
  • Fuel Type Diesel

Highlighted Features

Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
  • Turbo Charged Engine
  • Cruise Control

Dealer Comments

Odometer is 29985 miles below market average!

Eligible Benefits

View CARFAX report

All Features

  • Truck Application
  • GVWR, 14500 lbs (6577 kg) capacity
  • Air Cleaner, 11 in. diameter Dry Paper single element. (Donaldson brand) Air cleaner canister standard with air restriction gauge. The air cleaner snorkel is incorporated into the back of the cab and incorporates a resonator.
  • Alternator, 140 AMP with integral regulator
  • Battery, Dual 12-V maintenance free, 750 CCA each
  • Rear wheel drive
  • Front GAWR, 5360 lbs (2431 kg) capacity
  • Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
  • Front Suspension, 6830 lbs. (3098 kg) capacity. Semi-elliptical steel alloy tapered leaf springs. Includes shock absorbers and stabilizer bar.
  • Front Wheels, 16" x 6", 6-hole disc, painted white
  • Front Tires, 215/85R16E (10 ply) tubeless Radial, all season
  • Rear GAWR, 9880 lbs (4481 kg) capacity
  • Rear Axle, R040, Full-floating single-speed, 11,020 lbs. (4999 kg) capacity with oil lubricated rear wheel bearings
  • Rear Axle Ratio, 4.56:1
  • Rear Suspension, 9880 lbs. (4481 kg) capacity. Semi-elliptical steel alloy multi-leaf springs. Includes shock absorbers.
  • Rear Wheels, 16" x 6", 6-hole disc, painted white
  • Rear Tires, 215/85R16E (10 ply) tubeless Radial, all season
  • Wheelbase, 150" (381.0 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 11.89 cu.in. and RBM 523,160 lb-ft/in per rail.
  • Fuel Tank, 30-gallon (113.6L) rectangular fuel tank. Mounted between frame rail through the rail fuel fill. Fuel water separator with dash mounted warning light.
  • Exhaust Brake, Butterfly valve type
  • Exhaust System, Single horizontal with DPF/SCR (Diesel Particulate Filter/Selective Catalytic Reduction)
  • Paint Scheme, Solid
  • Hexapod cab
  • Cab Mounts, All steel 7 passenger low cab forward, BBC 109.9 in. (279.1 cm)
  • Daytime running lamps
  • Windows, Tinted glass
  • Mirrors, Dual cab mounted exterior with integral convex mirror
  • Windshield Wipers, Intermittent wet-arm

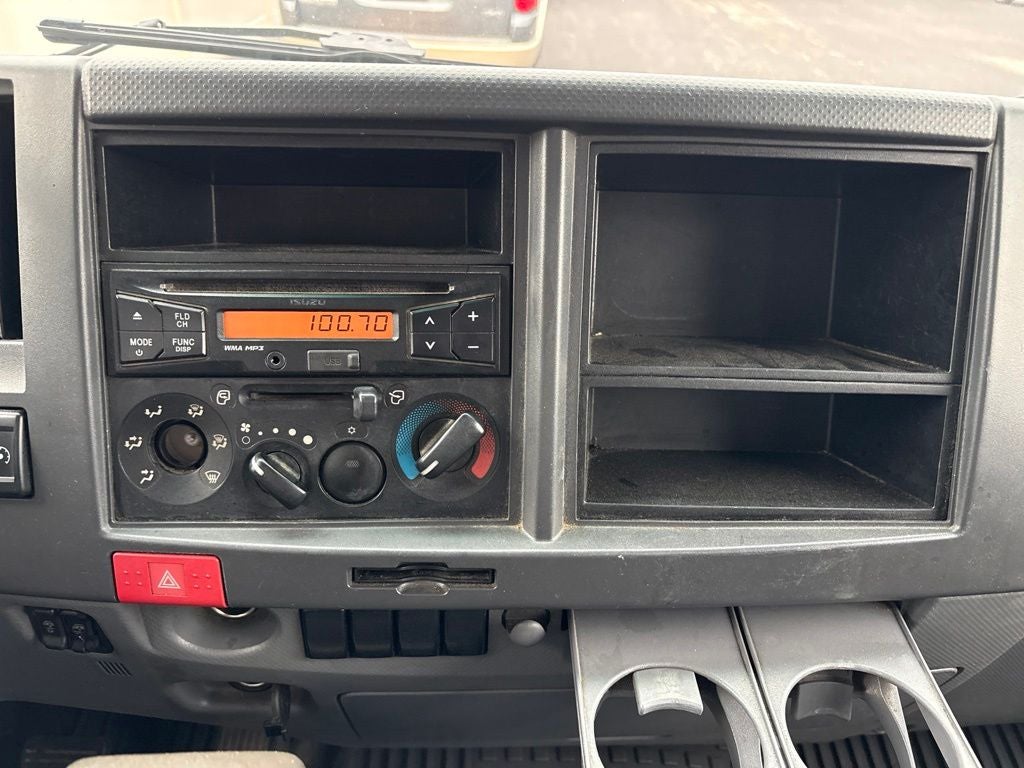

  • AM/FM/CD stereo radio

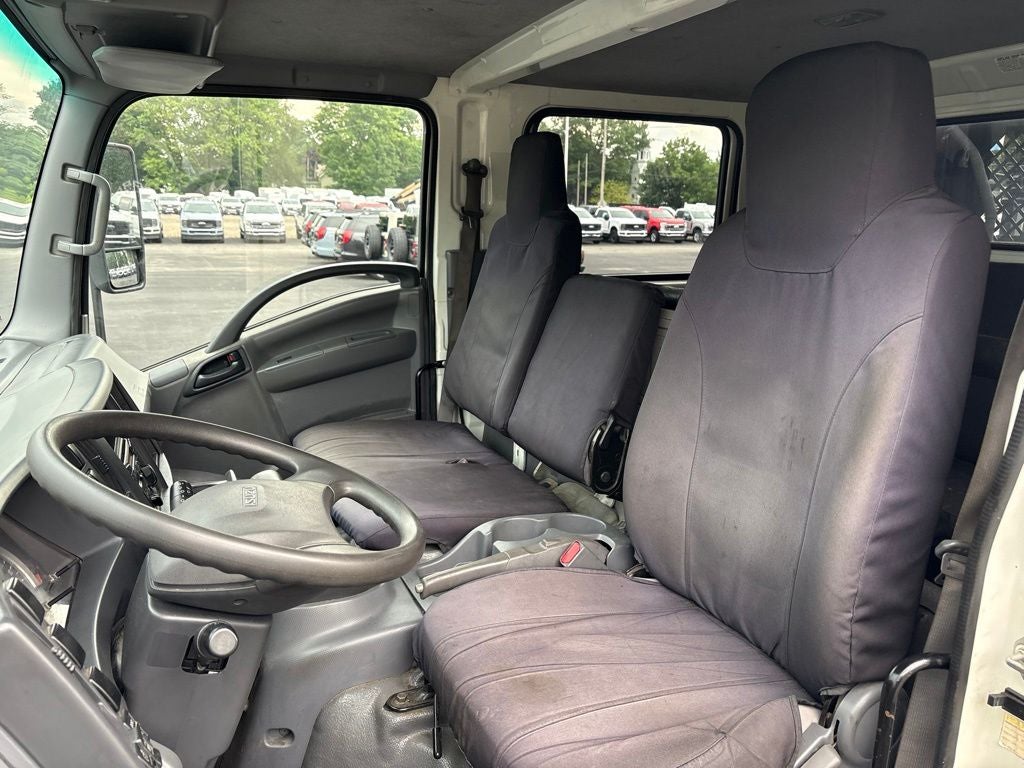

  • Tricot cloth covered reclining highback driver seat with single two occupant fold down passenger seats

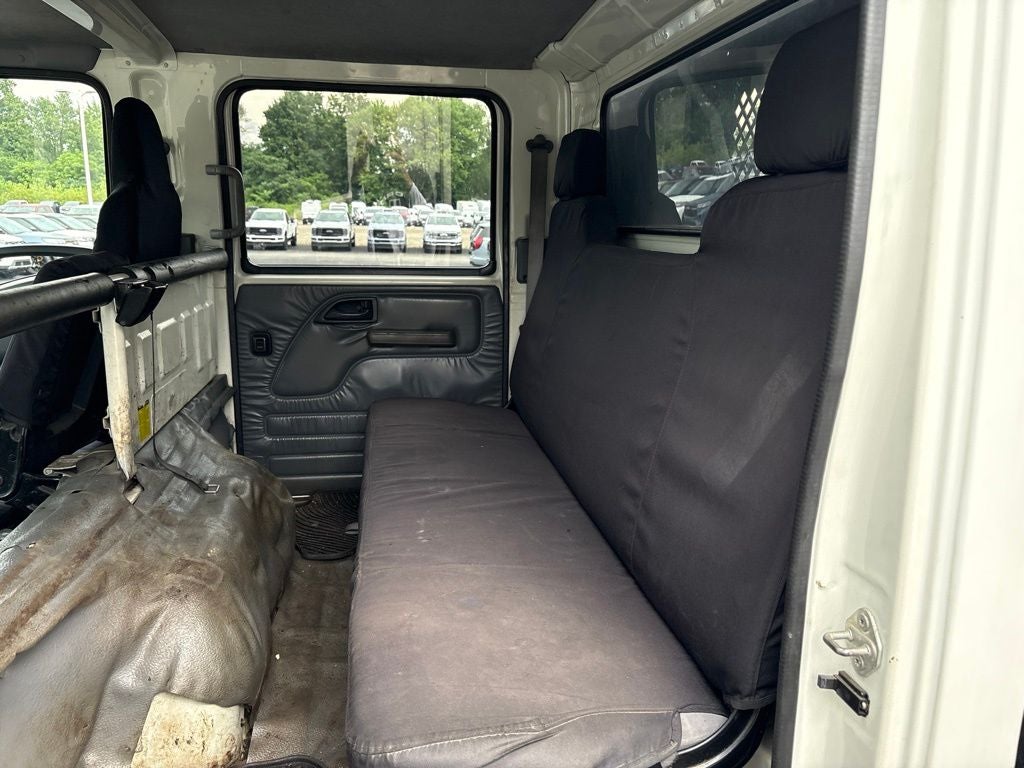

  • Seats, Passenger, Four passenger rear bench seat
  • Front floor mats

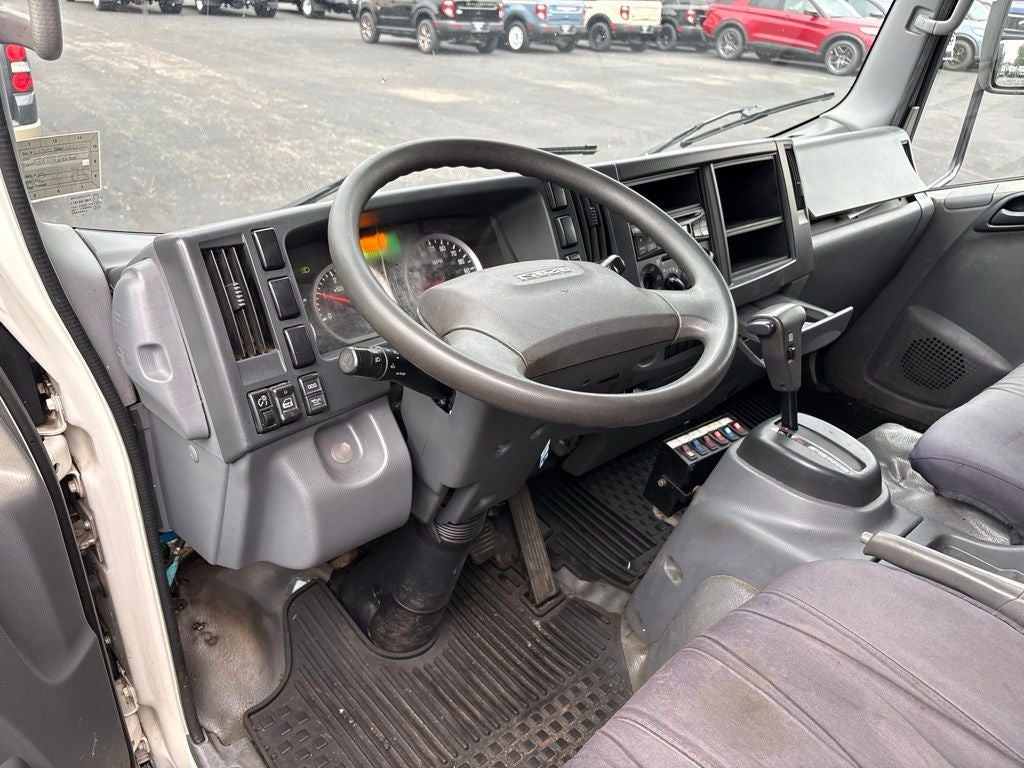

  • Tilt and telescoping steering column
  • Cruise control
  • Power windows & door locks
  • Door/seatback map pockets
  • Overhead storage shelf
  • Dome light
  • 4 channel anti-lock brake system
  • Daytime running lamps
  • EBD (Electronic Brake Distribution)

4HK1-TC, DIESEL ENGINE 317 CID (5.19L), 215 HP AT 2550 RPM: 452 FT-LB GROSS TORQUE AT 1850 RPM. 4 CYLINDER, 16 VALVE, FOUR CYCLE, OVERHEAD CAM, TURBOCHARGED, INTER-COOLED, WATER COOLED EGR VALVE, DIRECT INJECTION, ELECTRONICALLY CONTROLLED COMMON RAIL FUEL SYSTEM AND ENGINE CRUISE CONTROL.

  • Oil level check switch and light. Engine Warning system with audible warning for low oil pressure
  • high coolant temperature
  • and low coolant level. Rear engine cover. (STD)

  • Vehicle
    • Front Frame Rating: - TBD -
  • Electrical
    • Cold Cranking Amps @ 0° F (Primary): 750
    • Cold Cranking Amps @ 0° F (2nd): 750
    • Maximum Alternator Capacity (amps): 140
    • Maximum Alternator Watts: 1680
  • Cooling System
    • Total Cooling System Capacity (qts): 19.0
  • Weight Information
    • Gross Axle Wt Rating - Front (lbs): 5360
    • Gross Axle Wt Rating - Rear (lbs): 9880
    • Curb Weight - Front (lbs): 4415
    • Curb Weight - Rear (lbs): 2253
    • Gross Vehicle Weight Rating Cap (lbs): 14500
    • Gross Combined Wt Rating (lbs): 20500
  • Suspension
    • Suspension Type - Front: Tapered Leaf
    • Suspension Type - Rear: Multi-Leaf
    • Spring Capacity - Front (lbs): 6830
    • Spring Capacity - Rear (lbs): 9880
    • Axle Type - Front: Reverse I-Beam
    • Axle Type - Rear: Full-Floating
    • Axle Capacity - Front (lbs): 6830
    • Axle Capacity - Rear (lbs): 11020
    • Axle Ratio (:1) - Rear: 4.56
    • Shock Absorber Diameter - Front (mm): 42
    • Shock Absorber Diameter - Rear (mm): 42
    • Stabilizer Bar Diameter - Front (in): 1.65
  • Brakes
    • Brake Type: Power
    • Brake ABS System: 4-Wheel
    • Disc - Front (Yes or ): Yes
    • Front Brake Rotor Diam x Thickness (in): 11.5 x 0.51
    • Drum - Rear (Yes or ): Yes
    • Rear Drum Diam x Width (in): 12.6 x 3.94
  • Tires
    • Front Tire Order Code: I5H/I69
    • Rear Tire Order Code: I5H/I34
    • Front Tire Size: 215/85R16E
    • Rear Tire Size: 215/85R16E
    • Front Tire Capacity (lbs): 5360
    • Rear Tire Capacity (lbs): 9880
    • Revolutions/Mile @ 45 mph - Front: 682.9
    • Revolutions/Mile @ 45 mph - Rear: 682.9
    • Number Of Tires Front: 2
    • Number Of Tires Rear: 4
  • Wheels
    • Front Wheel Size (in): 16 x 6
    • Rear Wheel Size (in): 16 x 6
    • Front Wheel Offset (mm): 127.0
    • Rear Wheel Offset (mm): 127.0
    • # of Bolt Holes - Front: 6
    • # of Bolt Holes - Rear: 6
    • Front Wheel Material: Steel
    • Rear Wheel Material: Steel
    • Front Bolt Pattern: 6 Hole JIS 8.75"
    • Rear Bolt Pattern: 6 Hole JIS 8.75"
  • Steering
    • Steering Type: Power
    • Steering Ratio (:1), On Center: 18.8 - 20.9
    • Steering Ratio (:1), At Lock: 18.8 - 20.9
    • Turning Diameter - Curb to Curb (ft): 42.7
    • Turning Diameter - Wall to Wall (ft): 48.9
  • Frame
    • Frame Type: Ladder
    • Sect Modulus Rails Only (in³): 11.89
    • Frame RBM (N/A): 523160
    • Frame Strength (lbs): 44000
    • Frame Thickness (in): 8.5 X 2.76 X 0.24
  • Fuel Tank
    • Fuel Tank Capacity, Approx (gal): 30
    • Fuel Tank Location: In frame rail
  • Exterior Dimensions
    • Wheelbase (in): 150.0
    • Length, Overall w/o rear bumper (in): 241.5
    • Width, Max w/o mirrors (in): 81.3
    • Height, Overall (in): 90.8
    • Overhang, Front (in): 48.3
    • Overhang, Rear w/o bumper (in): 43.1
    • Front Bumper to Back of Cab (in): 109.9
    • Cab to Axle (in): 88.5
    • Cab to End of Frame (in): 131.6
    • Ground to Top of Frame (in): 31.1
    • Frame Width, Rear (in): 33.5
    • Ground Clearance, Front (in): 7.5
    • Ground Clearance, Rear (in): 7.5
    • Body Length Default Value (ft): 12
  • Interior Dimensions
    • Passenger Capacity: 7
    • Front Head Room (in): 38.4
    • Front Leg Room (in): 29.5
    • Front Shoulder Room (in): 70.7
    • Front Hip Room (in): 67.7
    • Second Head Room (in): 37.3
    • Second Leg Room (in): 22.3
    • Second Shoulder Room (in): 69.3
    • Second Hip Room (in): 69.3
  • Summary
    • Vehicle Name: Isuzu NPR HD DSL CREW
    • Body Style: Tilt Chassis Cab
  • Medium Duty Performance
    • Driver Ratio: 1
    • Torque @ Clutch Engage (ft-lbs): 265
    • Torque Converter: 1.764
    • Static Loaded Radius (in): 14.3
    • Max Speed For Gradeability: 76
